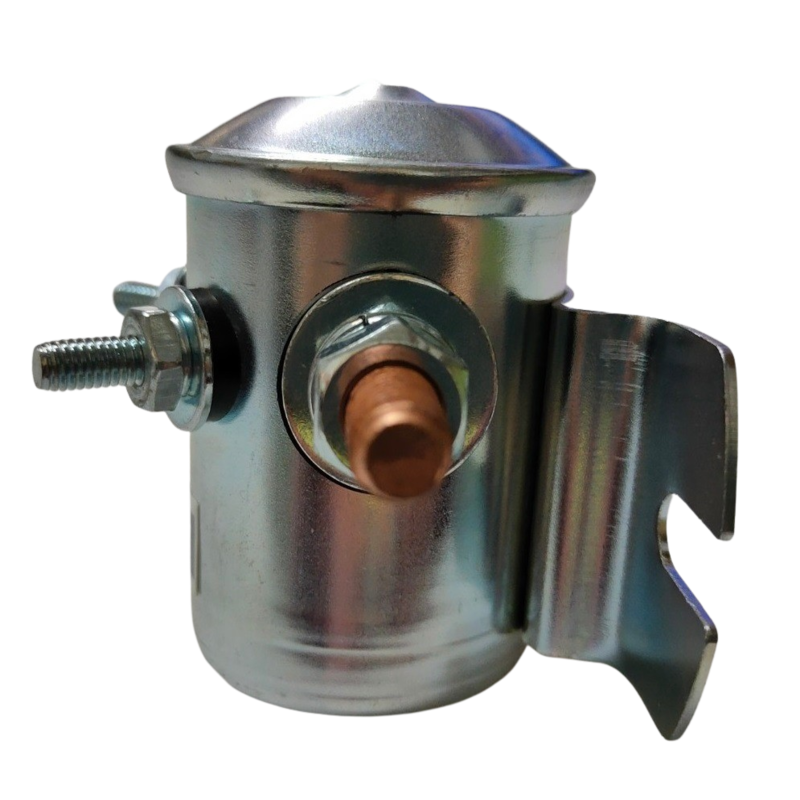

SWW-24V - Solenoid Starter Switch
An idle starter solenoid can receive a large electric current from the car battery and a small electric current from
the ignition switch. When the igenition switch is truned on, a small electric current is sent through the
starter solenoid .This cause the starter solenoid to close a pair of heavy contacts, thus relaying a large
electric current through the starter motor, whcih in turn sets the engine in motion.
** 24V 4P
**Coil Resistance: 64± 2Ohm** Working Volt : max15V
** Continuous Rating : 100A
**Maximum Current Make:150A
** Temperture Range : -30 ± 80℃
If a starter solenoid receives insufficient power from the battery, it will fail to start the motor, and may produce a rapid clicking sound.
The lack of power can be caused by a low battery, by corroded or loose connections in the battery cable,
or by a damaged positive (red) cable from the battery. Any of these problems will result in some, but not enough,
power being sent to the solenoid, which means that the solenoid will only begin to push the engagement gear,
making the metallic click sound.
1114223 , 2257158 , 3635820 , 56131K , 88923249 , U1453 , SS584, 185807
185836 , 277609 , 3209066 , 3209201 , 378444 , SWX72 , SS584
DODGE B150 (1984-1985)
DODGE B250 (1984-1985)
DODGE B350 (1984-1985)
